Specific design,innovative ultra-thin LED troffer Light is a design based on the ideal replacement of fluorescent troffer. TheTR01-22/24/14 accepts 120-277VAC and 120-347VAC, and have a high lumen efficiency up to 125Lm/W. With well -distributed soft light, no any dark spot and special ultra-thin design. This Luminaries is regarded as the leading of greening Lighting for commercial and industrial uses.
*Watt Options: 2X2:20W / 25W / 30W / 36W
2X4:25W / 30W / 40W / 50W
1x4:25W / 30W / 40W
*Input Voltage(V):AC100-277V
*Color Temperature(CCT):5000K
*Warranty(Year):5-Year
*Certification:ETL/DLC
*Lamp Luminous Efficiency(lm/w):130
*Application: Warehouse, Office,School,Supermarket.Parking lot.
Specification:

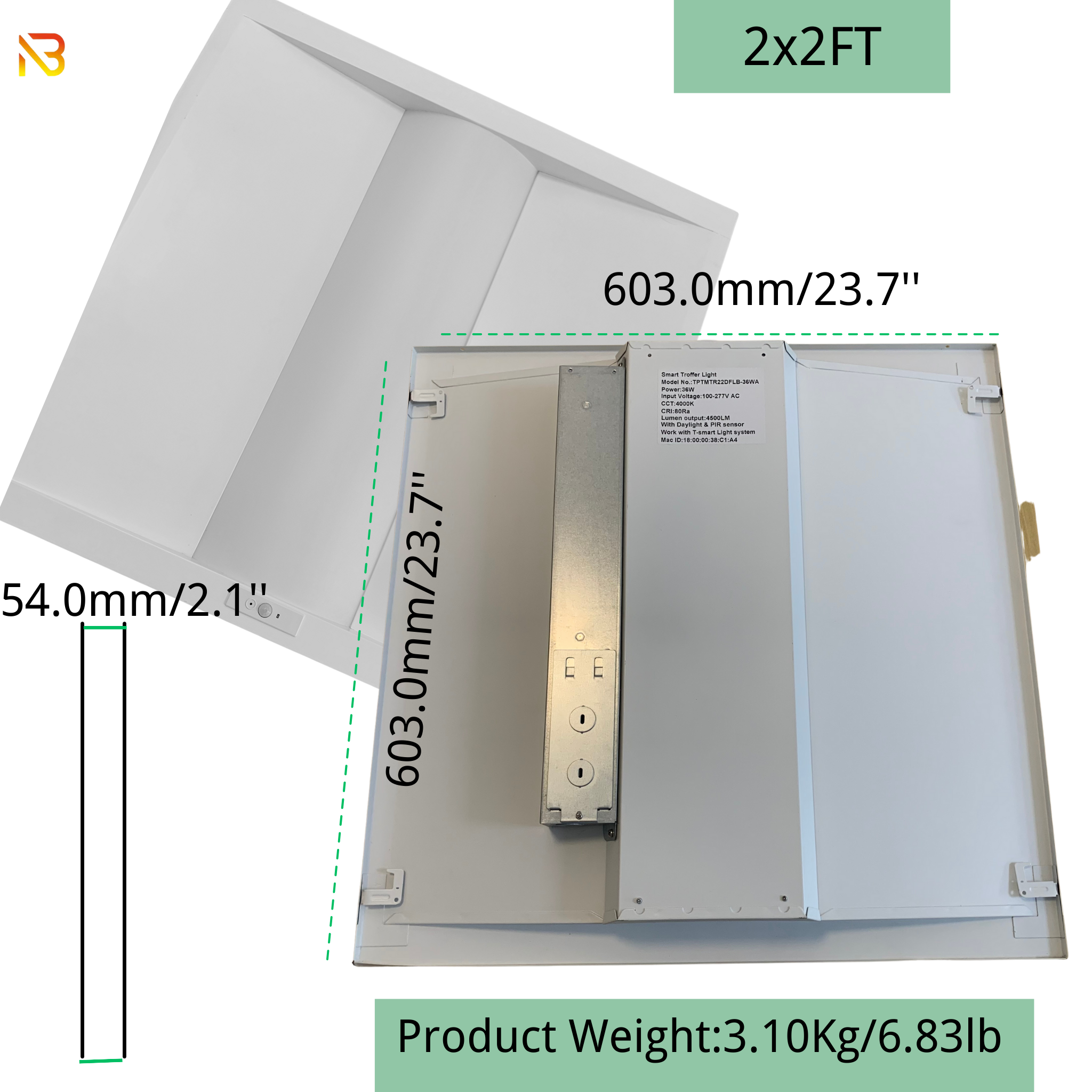

*Size: 2X2FT 1X4FT 2X4FT
*Lifespan (Hrs) > 50,000Hours,Input Voltage(V): 100-277V/180-528V.
*Frequency (Hz) 60/50 Hz,Power Factor > 0.90.
*Materials: Iron+AL,Fixed/3-stepsSwitchable.
Series | Specification | Lumens | CRI | CCT | Efficiency | Inputvoltage | Workingtemperature |
Led Troffer | ETLDI01B-24W | 3000Lm | >80RA | 5000k | 130LM/W | 100-277V | -30-50℃ |
ETLDI01B-30W | 3750Lm | ||||||
ETLDI01B-36W | 3750Lm | ||||||
ETLDI01B-40W | 5625Lm | ||||||
ETLDI01B-45W | 5625Lm |
